Concealed Sliding Door Hardware

For Wood And Glass Door

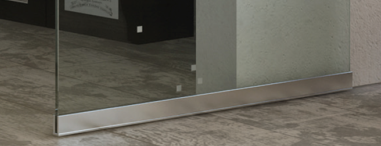

No lower track on the floor

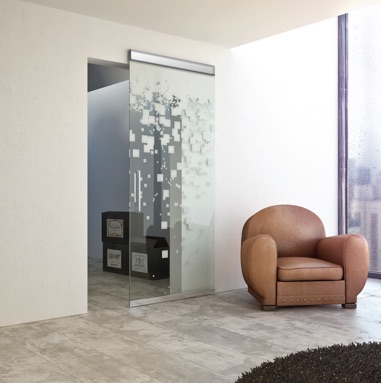

MAGIC VETRO VF

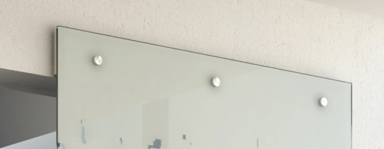

MAGIC GLASS

MAGIC VETRO VB

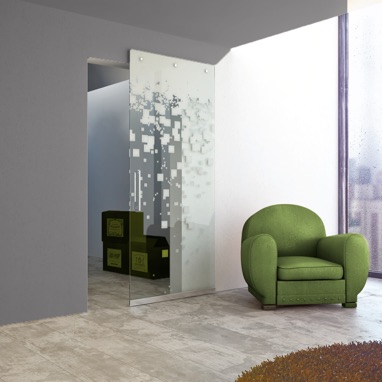

No upper track on the wall

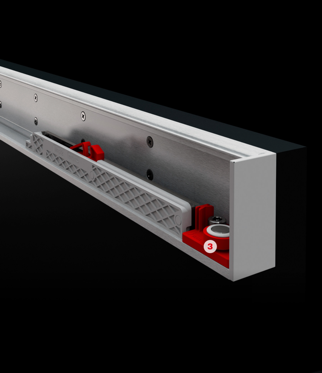

  1. 3. New position for spacer wheels


The Magic 2 system incorporates new spacer wheels, placed at the end of the door, to better protect the door from any contact with the wall.

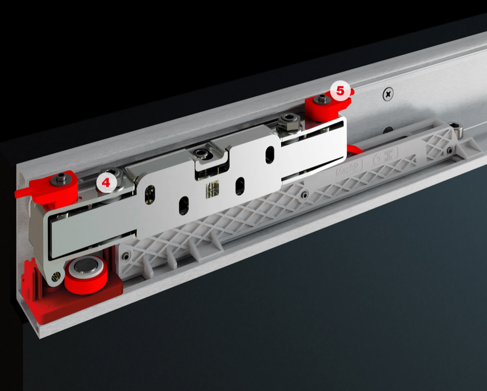

  1. 4. New PATENTED system for any type of adjustment


New PATENTED system for any type of adjustment

The new MAGIC 2 slider system incorporates a PATENTED® micro-metric adjustment system, which allows any type of vertical and horizontal adjustment: to compensate the possible wall irregularities. These operations are possible also without remove the door from the slide as it was in previous model.


     5. Practical un-hooking system

The MAGIC 2 system is equipped with two new anti unhooking elements.

In these new elements, two safety rods have been inserted,  they are used to easily rotate the anti unhooking without any other tool.

  1. 1. Patented lower wheels for better smoothness


The new lower wheels of MAGIC 2 have PATENTED suspensions, and have been designed with larger diameter,

larger bearings and bigger pivots.  The rubber on wheels has been doubled to make them stronger and smoother.


The new lower wheels of MAGIC 2 are equipped with new spring PATENTED system.

MAGIC 2 system integrates two fixed springs that works up to 40kg door weight.  For doors weight higher than 40kg, up to maximum 80kg, new wheels will flex more and hit the new rubber cylinder that act as an additional cushion for two springs.


  1. 2. Silent lower guide


In order to increase the smoothness of motion, the MAGIC 2 system is equipped with metallic lower guide made in zama. to better increase sliding silence MAGIC 2 also includes a plastic profile in the bottom of the door.

MAGIC WOOD
